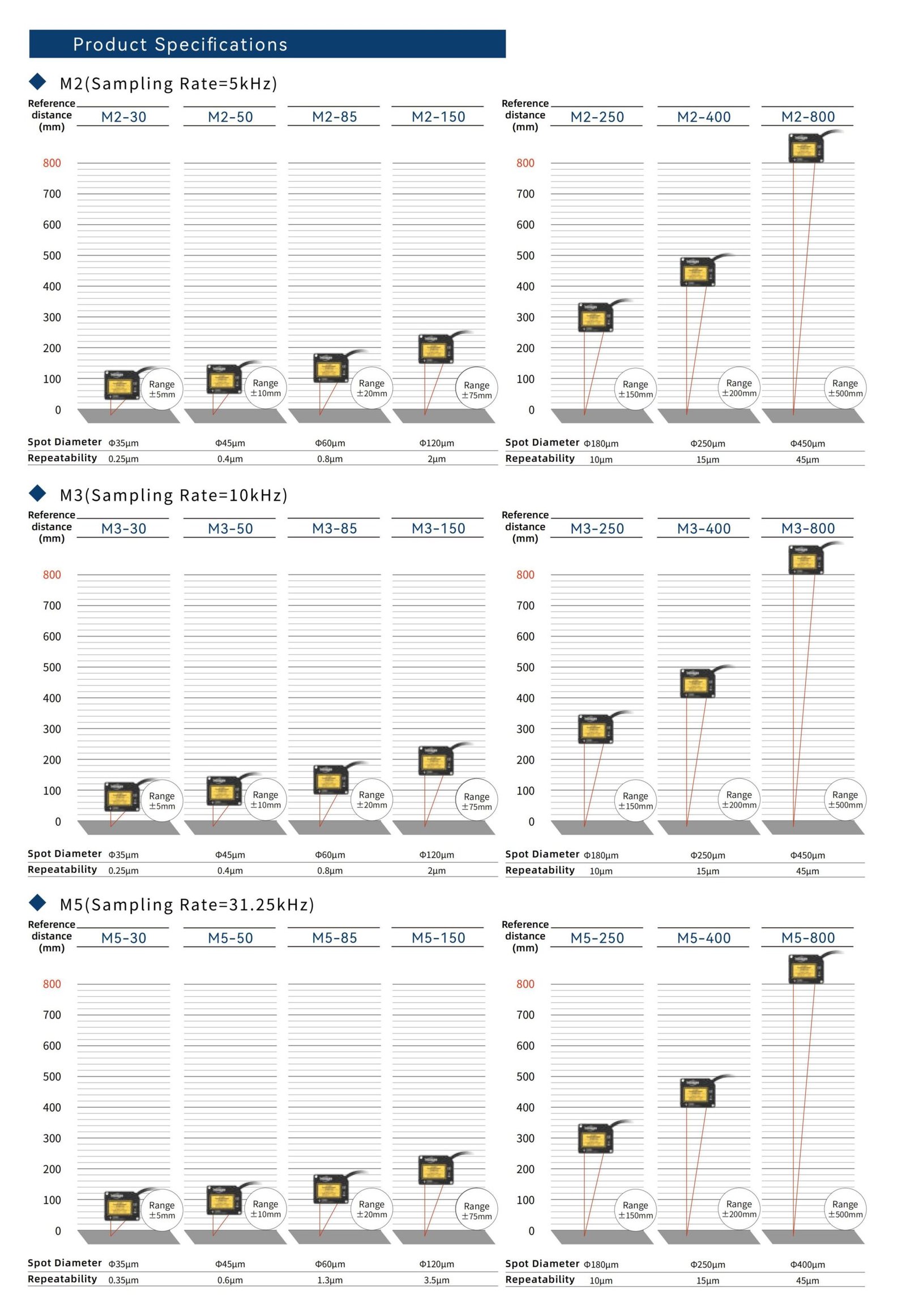

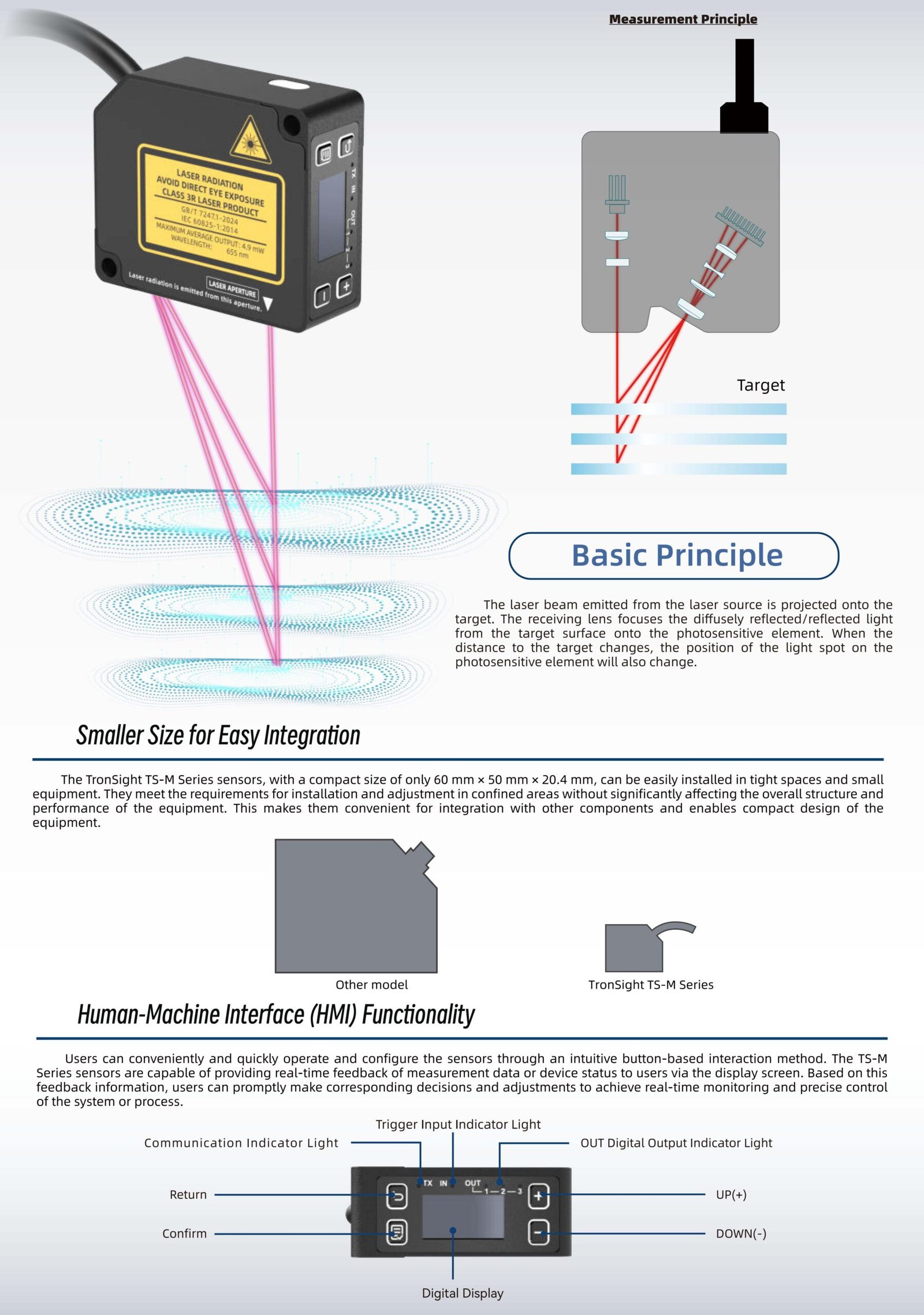

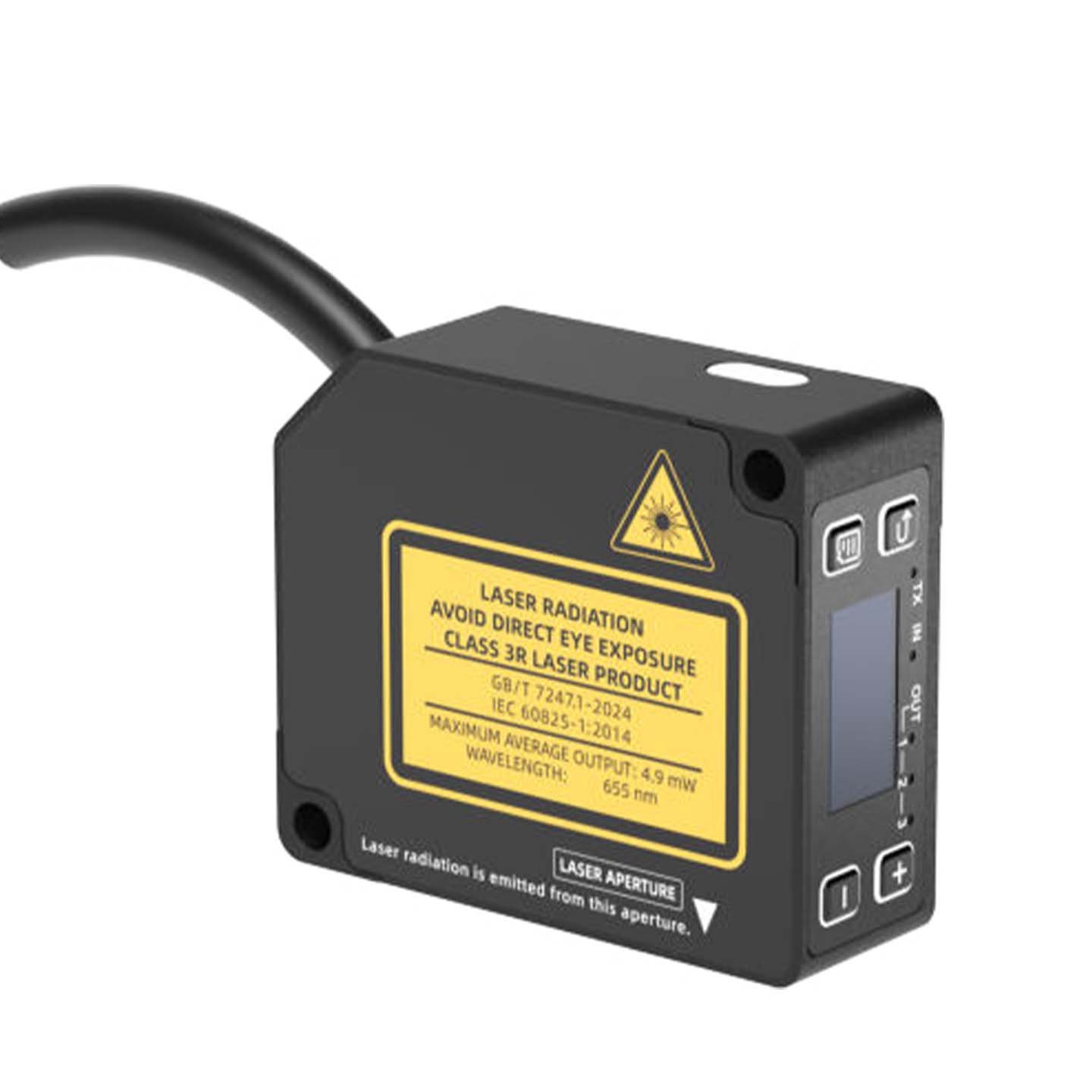

| M2Series |
|
|
|
|
|
| Model*1 |
Reference
Distance*2 |
Measurement
Range |
Spot Diameter |
Repeat-
ability |
Linear Error*4 |
Outer Diameter
*Length |
Weight |
Sampling
Rate |
Light Source |
| M2-30 |
30mm |
±5mm |
Φ35μm |
0.25μm |
<±8μm |
60*50*20.4mm |
230g |
5kHz |
655 nm
Max. 4.9 mW |
| M2-30W |
30mm |
±5mm |
35*400μm |
0.25μm |
<±5μm |
| M2-50 |
50mm |
±10mm |
Φ45μm |
0.4μm |
<±15μm |
| M2-50W |
50mm |
±10mm |
45*550μm |
0.4μm |
<±10μm |
| M2-85 |
85mm |
±20mm |
Φ60μm |
0.8μm |
<±40μm |
| M2-85W |
85mm |
±20mm |
60*800μm |
0.8μm |
<±30μm |
| M2-150 |
150mm |
±75mm |
Φ120μm |
2μm |
<±150μm |
| M2-150W |
150mm |
±75mm |
120*1500μm |
2μm |
<±113μm |
| M2-250 |
250mm |
±150mm |
Φ180μm |
10μm |
<±450μm |
660 nm
Max.50mW |
| M2-250W |
250mm |
±150mm |
180*2600μm |
10μm |
<±300μm |
| M2-400 |
400mm |
±200mm |
Φ250μm |
15μm |
< ±600μm |
| M2-400W |
400mm |
±200mm |
250*4500μm |
15μm |
<±400μm |
| M2-800 |
800mm |
±500mm |
Φ450μm |
45μm |
<±2000μm |
| M2-800W |
800mm |
±500mm |
450*6000μm |
45μm |
<±1000μm |
| M2-30R |
25.7mm |
±5mm |
Φ35μm |
0.25μm |
< ±5μm |
655 nm
Max. 4.9 mW |
| M2-50R |
46.4mm |
±6mm |
Φ45μm |
0.4μm |
< ±6μm |
| M2-85R |
85mm |
±10mm |
Φ60μm |
0.8μm |
< ±10μm |
| M2-30WR |
25.7mm |
±5mm |
35*400μm |
0.25μm |
< ±5μm |
| M2-50WR |
46.4mm |
±6mm |
45*550μm |
0.4μm |
< ±6μm |
| M2-85WR |
85mm |
±10mm |
60*800μm |
0.8μm |
< ±10μm |
| M2-150WR |
107.5mm |
±10.5mm |
120*1500μm |
2μm |
< ±16.8μm |
Temperature
Characteristics |
0.03% F.S. /℃ |
Industrial
Interface*5 |
RS-485 serial po忙 or analog signal output*6(Max.±10V,4-20mA) |
Measurement &
Control Software |
Comes with TSLaserStudio measurement & control software, C++&C# SDK |
| Operating Mode |
Operates independently without a controller |
| Supply Voltage |
DC 9~36V, maximum allowable ±10% fiuctuation |
Power
Consumption |
2.0W |
| IP Grade |
IP67(IEC60529) |
Operating
Temperature |
0 to +50oC |
*1 The M series is a new product, and the actual parameters may vary slightly. The contract shall prevail.
*2 Calculated based on the center position of the measuring range.
*3 Calibrated and verified using a nanoscale high-precision laser interferometer.
*4 The sensor head can independently provide voltage, current, and RS-485 output.
*5 Optional analog voltage/current output module is available
| M3Series |
| Model*1 |
Reference
Distance*2 |
Measurement
Range |
Spot Diameter |
Repeat-
ability |
Linear Error*4 |
Outer Diameter
*Length |
Weight |
Sampling
Rate |
Light Source |
| M3-30 |
30mm |
±5mm |
Φ35 |
0.25μm |
<±8μm |
60*50*20.4mm |
150g |
10kHz |
655 nm
Max. 4.9 mW |
| M3-30U |
30mm |
±5mm |
35*1200μm |
0.25μm |
<±5μm |
| M3-50 |
50mm |
±10mm |
Φ45μm |
0.4μm |
<±15μm |
| M3-50U |
50mm |
±10mm |
45μm*1800μm |
0.4μm |
<±10μm |
| M3-85 |
85mm |
±20mm |
Φ60μm |
0.8μm |
<±40μm |
| M3-85U |
85mm |
±20mm |
60*2600μm |
0.8μm |
<±30μm |
| M3-150 |
150mm |
±75mm |
Φ120μm |
2μm |
<±150μm |
| M3-150U |
150mm |
±75mm |
120*4600μm |
2μm |
<±113μm |
| M3-250 |
250mm |
±150mm |
Φ180μm |
10μm |
<±450μm |
| M3-250W |
250mm |
±150mm |
180*2600μm |
10μm |
<±300μm |
| M3-400 |
400mm |
±200mm |
Φ250μm |
15μm |
< ±600μm |
| M3-400W |
400mm |
±200mm |
250*4500μm |
15μm |
<±400μm |
| M3-800 |
800mm |
±500mm |
Φ450μm |
45μm |
<±2000μm |
660 nm
Max.50mW |
| M3-800W |
800mm |
±500mm |
450*6000μm |
45μm |
<±1000μm |
| M3-30R |
25.7mm |
±4.5mm |
Φ35μm |
0.25μm |
< ±7.2μm |
655 nm
Max. 4.9 mW |
[
| (Continued table) |
| M3-30UR |
25.7mm |
±4.5mm |
35×1200μm |
0.25μm |
< ±4.5μm |
60*50*20.4mm |
150g |
10kHz |
655 nm
Max. 4.9 mW |
| M3-50R |
46.9mm |
±4.5mm |
Φ45μm |
0.4μm |
< ±7.2μm |
| M3-85UR |
77.5mm |
±8mm |
60×2600μm |
0.8μm |
< ±12.8μm |
Temperature
Characteristics |
0.03% F.S. /℃ |
Industrial
Interface*5 |
Ethernet, RS-485 serial po忙, and analog signal output*6(Max.±10V,4-20mA) |
Measurement &
Control Software |
Comes with TSLaserStudio measurement & control software, C++&C# SDK |
| Operating Mode |
Operates independently without a controller |
| Supply Voltage |
DC 9~36V, maximum allowable ±10% fiuctuation |
Power
Consumption |
2.0W |
| IP Grade |
IP67(IEC60529) |
Operating
Temperature |
0 to +50oC |
*1 The M series is a new product, and the actual parameters may vary slightly. The contract shall prevail.
*2 Calculated based on the center position of the measuring range.3 Calibrated and verified using a nanoscale high-precision laser interferometer.
*4 The sensor head can independently provide voltage, current, and RS-485 output.
*5 Optional analog voltage/current output module is available
| Model*1 |
Reference
Distance*2 |
Measurement
Range |
Spot Diameter |
Repeat-
ability |
Linear Error*4 |
Outer Diameter
*Length |
Weight |
Sampling
Rate |
Light Source |
| M5-30 |
30mm |
±5mm |
Φ35μm |
0.35μm |
<±8μm |
60*50*20.4mm |
150g |
Ethernet:
31.25kHz
Analog:
50kHz |
655 nm
Max. 4.9 mW |
| M5-30W |
30mm |
±5mm |
35*400μm |
0.35μm |
<±5μm |
| M5-50 |
50mm |
±10mm |
Φ45μm |
0.6μm |
<±15μm |
| M5-50W |
50mm |
±10mm |
45*550μm |
0.6μm |
<±10μm |
| M5-85 |
85mm |
±20mm |
Φ60μm |
1.3μm |
<±40μm |
| M5-85W |
85mm |
±20mm |
60*800μm |
1.3μm |
<±30μm |
| M5-150 |
150mm |
±75mm |
Φ120μm |
3.5μm |
<±150μm |
| M5-150W |
150mm |
±75mm |
120*1500μm |
3.5μm |
<±113μm |
| M5-250 |
250mm |
±150mm |
Φ180μm |
10μm |
<±450μm |
| M5-250W |
250mm |
±150mm |
180*2600μm |
10μm |
<±300μm |
| M5-400 |
400mm |
±200mm |
Φ250μm |
15μm |
< ±600μm |
| M5-400W |
400mm |
±200mm |
250*4500μm |
15μm |
<±400μm |
| M5-800 |
800mm |
±500mm |
Φ400μm |
45μm |
<±2000μm |
660 nm
Max.50mW |
| M5-800W |
800mm |
±500mm |
450*6000μm |
45μm |
<±1000μm |
| M5-30R |
25.7mm |
±4.5mm |
Φ35μm |
0.35μm |
< ±4.5μm |
655 nm
Max. 4.9 mW |
| M5-50R |
44.4mm |
±5mm |
Φ45μm |
0.6μm |
< ±5μm |
| M5-85R |
76.5mm |
±5.5mm |
Φ60μm |
1.3μm |
< ±8.8μm |
| M5-30WR |
25.7mm |
±4.5mm |
35*400μm |
0.35μm |
< ±4.5μm |
| M5-50WR |
44.4mm |
±5mm |
45*550μm |
0.6μm |
< ±5μm |
| M5-85WR |
76.5mm |
±5.5mm |
60*800μm |
1.3μm |
< ±8.8μm |
| M5-150WR |
107.5mm |
±9mm |
120*1500μm |
3.5μm |
< ±14.4μm |
Temperature
Characteristics |
0.03% F.S. /℃ |
Industrial
Interface*5 |
Ethernet, RS-485 serial po忙, and analog signal output*6(Max.±10V,4-20mA) |
Measurement &
Control Software |
Comes with TSLaserStudio measurement & control software, C++&C# SDK |
| Operating Mode |
Operates independently without a controller |
| Supply Voltage |
DC 9~36V, maximum allowable ±10% fiuctuation |
Power
Consumption |
2.0W |
| IP Grade |
IP67(IEC60529) |
Operating
Temperature |
0 to +50oC |
*1 The M series is a new product, and the actual parameters may vary slightly. The contract shall prevail.
*2 Calculated based on the center position of the measuring range.*3 Calibrated and verified using a nanoscale high-precision laser interferometer.
*4 The sensor head can independently provide voltage, current, and RS-485 output.
*5 Optional analog voltage/current output module is available.] |
|
