Description

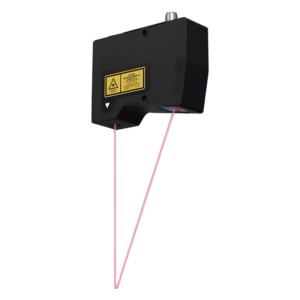

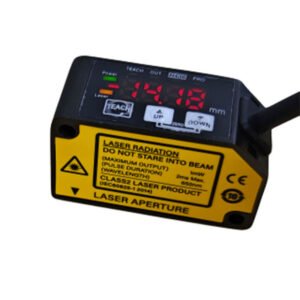

PDM Series
Covers short, medium, and long measurement
ranges; available in analog output and
RS-485 communication models. Maximum repeatability 0.5μm
Maximum linear accuracy ±0.05% F.S. Maximum sampling speed 4KHz
[
| PDM series |
|
|
|
|
|
Type |
Precision measurement type (focused spot) |
Long distance measurement type |
|
Model |
Analog output type |
PDM-050S-A |
PDM-085S-A |
PDM-120S-A |
PDM-350-A |
PDM-700-A |
|
RS-485 output type |
PDM-050S-485 |
PDM-085S-485 |
PDM-120S-485 |
PDM-350-485 |
PDM-700-485 |
|
Measurement center distance |
50mm |
85mm |
120mm |
350mm |
700mm |
|
Measurement range |
±10mm |
±20mm |
±60mm |
±250mm |
±500mm |
|
Repeatability 2 |
1μm |
2.5μm |
4μm |
25μm |
150μm |
|
Linearity 3 |
±0.1% F.S.
( F.S.=20mm )
±0.02mm |
±0.1% F.S.
( F.S.=40mm )
±0.04mm |
±0.1% F.S.
( F.S.=120mm )
±0.12mm |
±0.2% F.S.
( F.S.=500mm )
±1mm |
±0.15% F.S. ( 200-700mm )
±1.5mm
±0.3% F.S. ( 700-1200mm )
±3mm |
|
Beam
diameter |
NEAR side |
φ160μm |
φ110μm |
φ190μm |
φ210μm |
φ0.3mm |
|
Reference distance |
φ74μm |
φ120μm |
φ200μm |
φ620μm |
φ1.1mm |
|
FAR side |
φ91μm |
φ160μm |
φ710μm |
φ1400μm |
φ1.8mm |
|
Light source |
Red semiconductor laser Class 2，
Max. output: 1 mW, emission peak wavelength: 655 nm |
Red semiconductor laser Class 2，
Max. output: 2mW, emission peak wavelength: 655 nm |
|
Response time |
250μs / 500μs / 1ms / 2ms / 4ms / 8ms / 16m |
1ms / 2ms / 4ms / 8ms / 16ms |
|
Laser class ( GB/IEC ) |
Class2* 1 |
|
Temperature characteristic |
±0.05% F.S. /℃ |
|
RS-485 communication 4 |
Half Duplex |
|
External input function |
Measurement Value Hold / Peak Hold / Peak-to-Peak Hold / Valley Hold / Average Hold / Trigger Output /
Laser ON/OFF / Zero Reset / Trigger Teaching, etc. |
|
Analog
output 5 |
Analog current |
Output range: 4 to 20 mA, Load impedance: 300 Ω or less |
|
Analog voltage |
0~5V/0~10V ，Output impedance: 100 Ω |
|
I/O output |
Open-collector output (NPN or PNP), max. 100 mA / DC 30 V, residual voltage ≤ 1.8 V |
|
Supply voltage |
12V~24V DC ±10 % Ripple P-P 10 % or less |
|
Power consumption |
100mA or less |
|
Protection circuit |
Reversed polarity ，Overcurrent protectio ，Short-circuit protection |
|
Environmental resistance |
Protection |
IP67（ IEC ） |
|
Ambient temperature |
-10 to +50 °C (No dew condensation or icing allowed), Storage: -20 to +60 °C |
|
Ambient humidity |
35 to 85%RH (No condensation) |
|
Ambient illuminance |
Incandescent light: 3,000 lux or less at the light-receiving face |
|
Vibration resistance |
10 to 55 Hz (period: 1 min.) frequency, 1.5 mm double amplitude in X, Y and Z directions for two hours each |
|
Shock resistance |
500 m/s² acceleration (50 G approx.) in X, Y and Z directions three times each |
|
Material |
Aluminum die-cast |
|
Weight |
160g approx. (including cable) |
|
Notes: |
|
|
1, Laser classification is based on the international standard IEC60825-1 . |
|
2, The data is measured at a reference distance with a sampling period of 1 ms and an averaging count of 512 for the PHOSKEY standard target (white matte ceramic) .
3, The data is measured based on default parameters for the PHOSKEY standard target (white matte ceramic) .
4, Only the RS-485 output type is supported.
5, Only the analog output type is supported. |
| PDM series |
| Type |
Precision measurement type
(wide spot) |
Precision measurement
type (focused spot) |
| Model |
Analog output type |
PDM-030-A |
PDM-050-A |
PDM-085-A |
PDM-120-A |
PDM-030S-A |
| RS-485 output type |
PDM-030-485 |
PDM-050-485 |
PDM-085-485 |
PDM-120-485 |
PDM-030S-485 |
| Measurement center distance |
30mm |
50mm |
85mm |
120mm |
30mm |
| Measurement range |
±4mm |
±10mm |
±20mm |
±60mm |
±4mm |
| Repeatability 2 |
0.5μm |
1μm |
2.5μm |
4μm |
0.5μm |
| Linearity 3 |
±0.05% F.S.
( F.S.=8mm )
±4μm |
±0.05% F.S.
( F.S.=20mm )
±10μm |
±0.05% F.S.
( F.S.=40mm )
±20μm |
±0.1% F.S.
( F.S.=120mm )
±120μm |
±0.1% F.S.
( F.S.=8mm )
±8μm |
Beam
diameter |
NEAR side |
0.13×1.5mm |
0.18×2.1mm |
0.23×2.2mm |
0.36×2.1mm |
φ120μm |
| Reference distance |
0.13×1.1mm |
0.18×1.8mm |
0.29×1.8mm |
0.37×1.9mm |
φ48μm |
| FAR side |
0.14×0.79mm |
0.21×1.5mm |
0.34×1.4mm |
0.51×1.6mm |
φ53μm |
| Light source |
Red semiconductor laser Class 2 ，Max. output: 1 mW, emission peak wavelength: 655 nm |
| Response time |
250μs / 500μs / 1ms / 2ms / 4ms / 8ms / 16ms |
| Laser class ( GB/IEC ) |
Class2 1 |
| Temperature characteristic |
±0.05% F.S. /℃ |
| RS-485 communication 4 |
Half Duplex |
| External input function |
Measurement Value Hold / Peak Hold / Peak-to-Peak Hold / Valley Hold / Average Hold / Trigger Output /
Laser ON/OFF / Zero Reset / Trigger Teaching, etc. |
Analog
output 5 |
Analog current |
Output range: 4 to 20 mA, Load impedance: 300 Ω or less |
| Analog voltage |
0~5V/0~10V ，Output impedance: 100 Ω |
| I/O output |
Open-collector output (NPN or PNP), max. 100 mA / DC 30 V, residual voltage ≤ 1.8 V |
| Supply voltage |
12V~24V DC ±10 % Ripple P-P 10 % or less |
| Power consumption |
100mA or less |
| Protection circuit |
Reversed polarity ，Overcurrent protectio ，Short-circuit protection |
| Environmental resistance |
Protection |
IP67（ IEC ） |
| Ambient temperature |
-10 to +50 °C (No dew condensation or icing allowed), Storage: -20 to +60 °C |
| Ambient humidity |
35 to 85%RH (No condensation) |
| Ambient illuminance |
Incandescent light: 3,000 lux or less at the light-receiving face |
| Vibration resistance |
10 to 55 Hz (period: 1 min.) frequency, 1.5 mm double amplitude in X, Y and Z directions for two hours each |
| Shock resistance |
500 m/s² acceleration (50 G approx.) in X, Y and Z directions three times each |
| Material |
Aluminum die-cast |
| Weight |
160 g approx. (including cable) |
| Notes: |
| 1, Laser classification is based on the international standard IEC60825-1 . |
2, The data is measured at a reference distance with a sampling period of 1 ms and an averaging count of 512 for the PHOSKEY standard target (white matte ceramic) .
3, The data is measured based on default parameters for the PHOSKEY standard target (white matte ceramic) .
4, Only the RS-485 output type is supported.
5, Only the analog output type is supported. |
] |

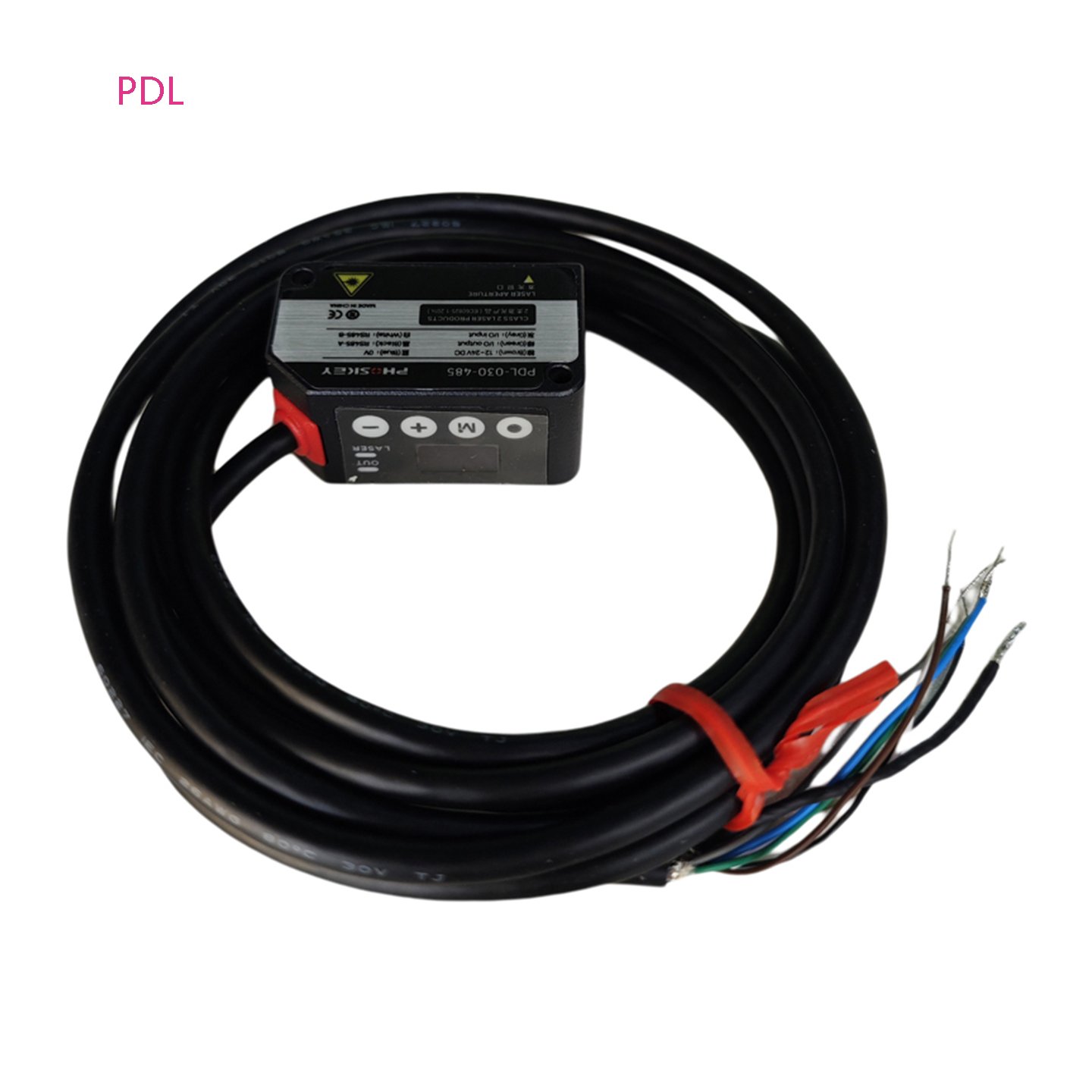

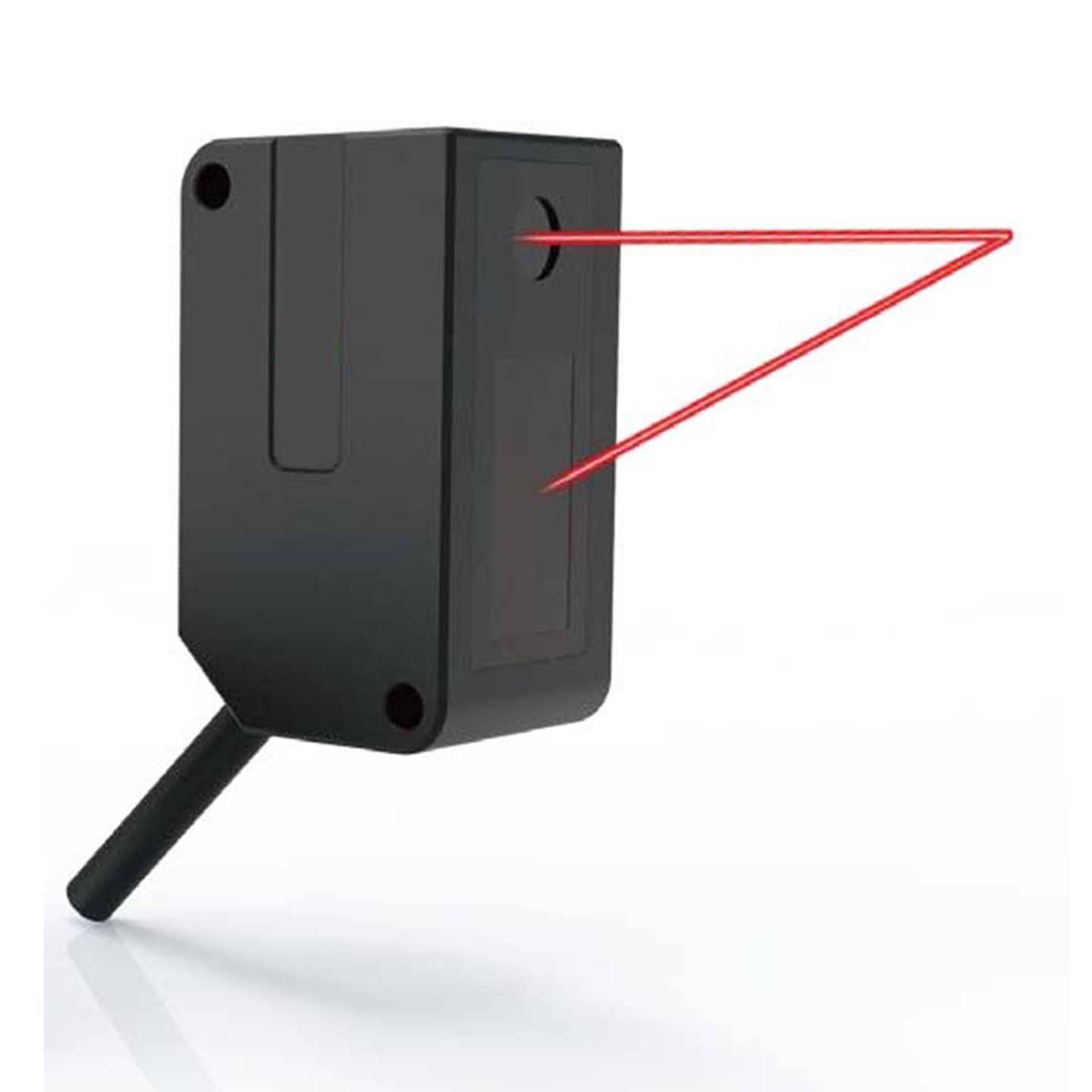

PDL Series
Compact design for tight spaces,
delivering cost-effective integration. Maximum repeatability 1μm Maximum sampling speed 2KHz
Maximum linear accuracy ±0.1% F.S.
[
| PDL series |
| Model |
Analog output type |
PDL-030-A |
PDL-050-A |
PDL-100-A |
PDL-200-A |
| RS485 output type |
PDL-030-485 |
PDL-050-485 |
PDL-100-485 |
PDL-200-485 |
| Measurement center distance |
30mm |
50mm |
100mm |
200mm |
| Measurement range |
±5mm |
±15mm |
±35mm |
±80mm |
Beam
diamete |
NEAR side |
Φ140μm |
Φ190μm |
φ150μm |
φ180μm |
Reference distance
r |
φ50μm |
φ70μm |
φ140μm |
φ300μm |
| FAR side |
φ50μm |
φ120μm |
φ320μm |
φ440μm |
| Repeatability 2 |
1μm |
2μm |
5μm |
10μm |
| Linearity 3 |
±0.1%F.S.
( F.S.=10mm )
±0.01mm |
±0.1%F.S.
( F.S.=30mm )
±0.03mm |
±0.1%F.S.
( F.S.=70mm )
±0.07mm |
±0.15%F.S.
( F.S.=160mm )
±0.24mm |
| Response time |
500us / 1ms / 2ms / 4ms / 8ms / 16ms |
| Light source |
Red semiconductor laser Class 2 ，Max. output: 1 mW, emission peak wavelength: 655 nm |
| Laser class ( GB/IEC ) |
Class2 1 |
| Temperature characteristic |
±0.05%F.S. / ℃ |
| I/O output |
NPN open-collector transistor/PNP open-collector transistor,Max. 100mA / DC 30V ，residual voltage 1.8V |
| External input function |
Measurement Value Hold / Peak Hold / Peak-to-Peak Hold / Valley Hold / Average Hold / Trigger Output /
Laser ON/OFF / Zero Reset / Trigger Teaching, etc. |
Analog
output 4 |
Analog current |
Output range: 4 to 20 mA, Load impedance: 300 Ω or less |
| Analog voltage |
0~5V/0~10V ，Output impedance: 100 Ω |
| RS-485 communication 5 |
Half Duplex |
| Supply voltage |
12V~24V DC ±10 % Ripple P-P 10 % or less |
| Power consumption |
60mA or less |
| Protection circuit |
Reversed polarity ，Overcurrent protectio ，Short-circuit protection |
| Environmental resistance |
Protection |
IP67（ IEC ） |
| Ambient temperature |
-10 to +45 °C (No dew condensation or icing allowed), Storage: -20 to +60 °C |
| Ambient humidity |
35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance |
Incandescent light: 3,000 lx or less at the light-receiving face |
| Vibration resistance |
10 to 55 Hz (period: 1 min.) frequency, 1.5 mm double amplitude in X, Y and Z directions for two hours each |
| Shock resistance |
500 m/s² acceleration (50 G approx.) in X, Y and Z directions three times each |
| Material |
Aluminum die-cast |
| Weight |
85g approx. (including cable) |
| Notes: |
|
| 1. Laser classification is based on the international standard IEC60825-1; |
2. It is the data of PHOSKEY standard target (white lusterless ceramic) measured at the reference distance, sampling period of 1ms, and averaging number of 512 times;
3. Based on the default parameters measured PHOSKEY standard target object (white non-glossy ceramic) data;
4. Only analog output type is supported;
5. Only RS-485 output type is supported. |
| PDL series |
|
|
Model |
Analog output type |
PDL-400-A |
PDL-700-A |
PDL-800-A |
|
RS485 output type |
PDL-400-485 |
PDL-700-485 |
PDL-800-485 |
|
Measurement center distance |
400mm |
700mm |
400mm |
|
Measurement range |
±200mm |
±500mm |
35-800mm |
|
Beam
diamete |
NEAR side |
φ250μm |
φ250μm |
φ650μm |
|
Reference distance
r |
φ580μm |
φ1200μm |
φ800um |
|
FAR side |
φ970μm |
φ2000μm |
φ2000μm |
|
Repeatability 2 |
100μm |
250μm |
200μm |
|
Linearity 3 |
±0.3%F.S.
( F.S.=400mm )
±1.2mm |
±0.6%F.S.
( F.S.=1000mm )
±6mm |
±0.65% F.S.(35-400mm) ±4.97mm
±1.5% F.S.(400-800mm) ±11.475mm |
|
Response time |
500us / 1ms / 2ms / 4ms / 8ms / 16ms |
|
Light source |
Red semiconductor laser Class 2 ，Max. output: 1 mW, emission peak wavelength: 655 nm |
|
Laser class ( GB/IEC ) |
Class2 1 |
|
Temperature characteristic |
±0.05%F.S. / ℃ |
|
I/O output |
NPN open-collector transistor/PNP open-collector transistor,Max. 100mA / DC 30V ，residual voltage 1.8V |
|
External input function |
Measurement Value Hold / Peak Hold / Peak-to-Peak Hold / Valley Hold / Average Hold / Trigger Output /
Laser ON/OFF / Zero Reset / Trigger Teaching, etc. |
|
Analog
output 4 |
Analog current |
Output range: 4 to 20 mA, Load impedance: 300 Ω or less |
|
Analog voltage |
0~5V/0~10V ，Output impedance: 100 Ω |
|
RS-485 communication 5 |
Half Duplex |
|
Supply voltage |
12V~24V DC ±10 % Ripple P-P 10 % or less |
|
Power consumption |
60mA or less |
|
Protection circuit |
Reversed polarity ，Overcurrent protectio ，Short-circuit protection |
|
Environmental resistance |
Protection |
IP67（ IEC ） |
|
Ambient temperature |
-10 to +45 °C (No dew condensation or icing allowed), Storage: -20 to +60 °C |
|
Ambient humidity |
35 to 85 % RH, Storage: 35 to 85 % RH |
|
Ambient illuminance |
Incandescent light: 3,000 lx or less at the light-receiving face |
|
Vibration resistance |
10 to 55 Hz (period: 1 min.) frequency, 1.5 mm double amplitude in X, Y and Z directions for two hours each |
|
Shock resistance |
500 m/s² acceleration (50 G approx.) in X, Y and Z directions three times each |
|
Material |
Aluminum die-cast |
|
Weight |
85g approx. (including cable) |
|
Notes: |
|
|
1. Laser classification is based on the international standard IEC60825-1; |
|
2. It is the data of PHOSKEY standard target (white lusterless ceramic) measured at the reference distance, sampling period of 1ms, and averaging number of 512 times;
3. Based on the default parameters measured PHOSKEY standard target object (white non-glossy ceramic) data;
4. Only analog output type is supported;
5. Only RS-485 output type is supported. |
] |
Reviews
There are no reviews yet.
