Name: High-Precision Laser Displacement Sensor 0.02μm -
SKU: 300

Description

SG series

displacement sensor built for advanced application scenarios has a
repeatability accuracy of 0.02µm, a sampling frequency of 590kHz, a maximum of four
sensor heads, multi-channel I/O interfaces, and small laser spots and wide laser spots

Max sampling frequency 590kHz Repeatability 0.02μm Linearity ±0.02% F.S

Excellent temperature control system 0.01% F.S./°C Provide Ethernet, analog and other communication methods

Connect four sensor heads at a time and output eight measured values at the same time

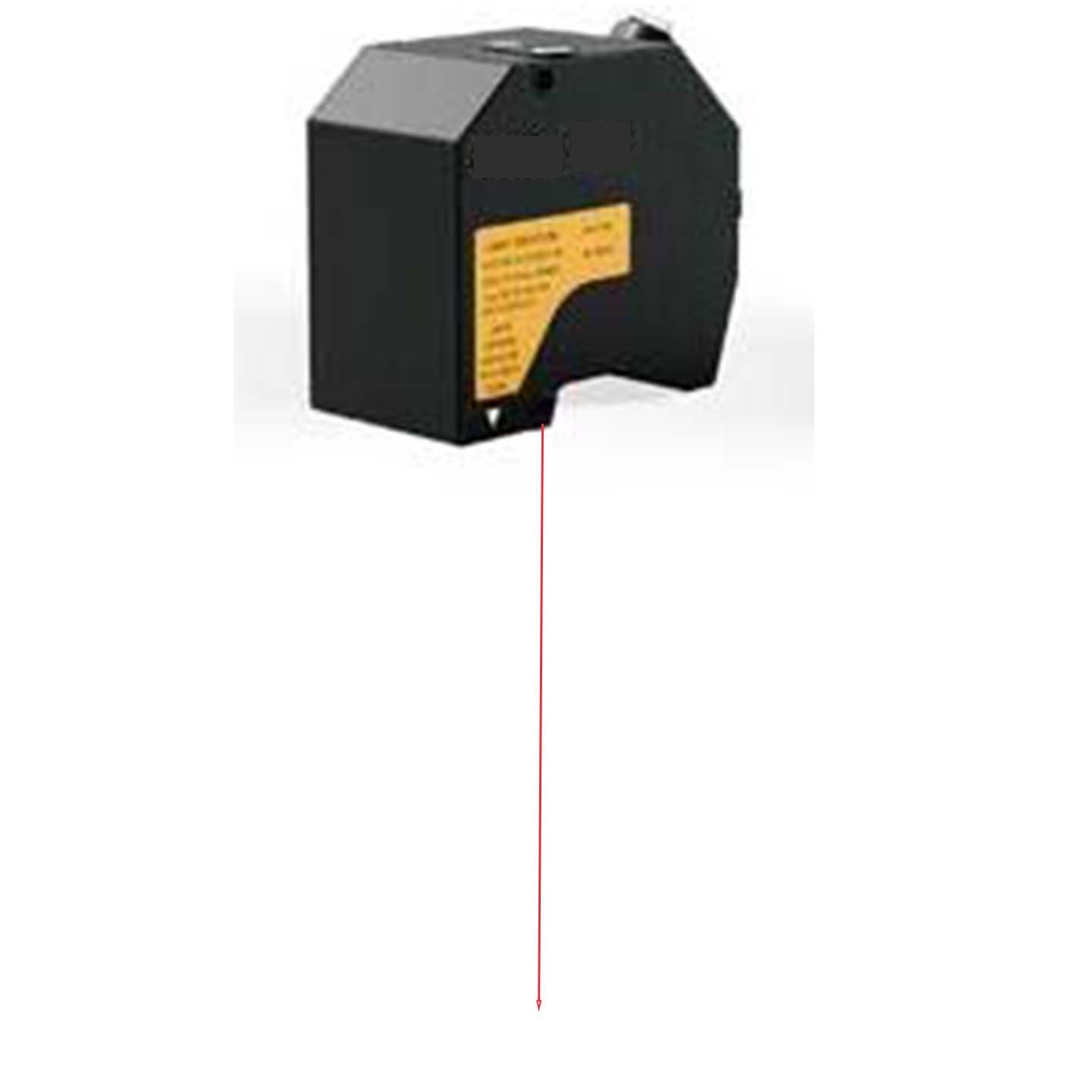

SGI series

adopts an integrated design to build a displacement sensor with high
integration, with a repetition accuracy of 0.05µm, a high flexible shielded cable, a
sampling frequency of up to 88kHz and a maximum measuring range of 900mm, and
supports multiple I/O input and output interfaces

Max sampling frequency 88kHz Max data storage 120W

Repeatability ： 0.05μm Ultra-large depth of field measurement 900mm

Provide Ethernet, analog and other communication methods

Can be used on a mechanical arm,and is not limited by equipment wiring

Product Specification

[

Sensor Head

Series

SG3000 Series

SG5000 Series

Model

SG3030

SG3035

SG3080

SG3085

SG3150

SG3155

SG5020

SG5025

SG5050

SG5055

SG5080

SG5085

SG5150

SG5155

Reference distance
(CD)

30mm

80mm

150mm

20mm

50mm

80mm

150mm

Measuring range

-5mm~5mm

– 17mm ~ 15mm

-47mm ~35mm

-3mm~3mm

– 9mm ~ 8mm

– 19mm ~ 16mm

-47mm~35mm

Light source
wavelength

655nm

Spot size

φ60um

φ60*400um

φ110μm

110*720um

φ19oum

190*1300um

φ45μm

45*400μm

φ75um

75*400um

φ110um

110*720um

φ190um

190*1300um

Repeatability

③

0.05μm

0.2μm

0.5μm

0 . 02μm

0 . 025μm

0.1μm

0 . 25μm

Linearity

土0 . 05% F. S.

土0 . 02% F. S.

Temperature
characteristics

0 . 01% F. S. /

Sampling frequency
(Hz)

1/2/5/10/20/50/88kHz (Optional)

1/2/5/10/20/50/88/200/400/590 kHz (Optional)

Communication port

One 100Base-TX/1000Base-T Ethernet
interface, one RS232 port

Analog output

Four analog output, supporting the switching
between analog voltage and analog current

Encoder input

One group of differential encoders

Working temperature

0 ~50’C

Storage temperature

-2070C

-2070’C

Operating voltage

24VDC土10%

Shell material

Aluminium alloy

IP level

IP67, conforming to IEC 60529 standard

Dimension (mm)

90*75*38

85*77*47

85*76*47

60*61*41

69*71*47

75*70*47

85*76*47

Weight
(including cable)

324g

376g

370g

324g

323g

329g

370g

Notes: ① Recommended optimal installation distance; this parameter corresponds to the diffuse reflection mode. ② Positive values indicate the near end,
and negative values indicate the far end. ③ The reference distance was obtained from an average of 4096 static tests.

[

Series

SGI Series

Model

SGi 030

SGi 035

SGi 050

SGi 035

SGi 080

SGi 085

SGi 150

SGi 155

SGi 400

SGi 405

SGi 500

SGi 505

Reference distance
(CD)

30mm

50mm

80mm

150mm

400mm

500mm

Measuring range

– 5mm~5mm

– 9mm ~ 8mm

– 17mm ~ 15mm

-47mm~35mm

– 100mm ~ 100mm

– 650mm~250mm

Light source
wavelength

655nm

Spot size

φ60μm

60*400μm

φ75μm

75*480μm

φ110μm

110*720μm

φ190μm

190*1300μm

φ450μm

450*1300μm

φ500μm

500*6000μm

Repeatability

0.05μm

0.1 μm

0.2μm

0.5μm

2μm

Linearity

土0 . 05% F. S.

250mm-450mm :    土0 . 02% F. S.
450mm- 750mm :    土0 . 05% F. S.
750mm- 1150mm:    土0 . 1% F. S.

Temperature
characteristics

0 . 01% F. S. /

Sampling frequency
(Hz)

1/2/5/10/20/50/88kHz (Optional)

Communication port

One 100Base-TX/1000Base-T Ethernet
interface, one RS485 port

Analog output

Four analog output, supporting the switching
between analog voltage and analog current

Encoder input

Working temperature

0 ~50’C

Storage temperature

– 2070C

Operating voltage

DC12- 24V

Shell material

Aluminium alloy

IP level

IP67, conforming to IEC 60529 standard

Dimension (mm)

90*75*41

72*71*50

88*77*50

88*79*50

119*85*35

Weight
(including cable)

324g

323g

376g

370g

380g

Notes: ① Recommended optimal installation distance; this parameter corresponds to the diffuse reflection mode. ② Positive values indicate the near end,

and negative values indicate the far end. ③ The reference distance was obtained from an average of 4096 static tests.

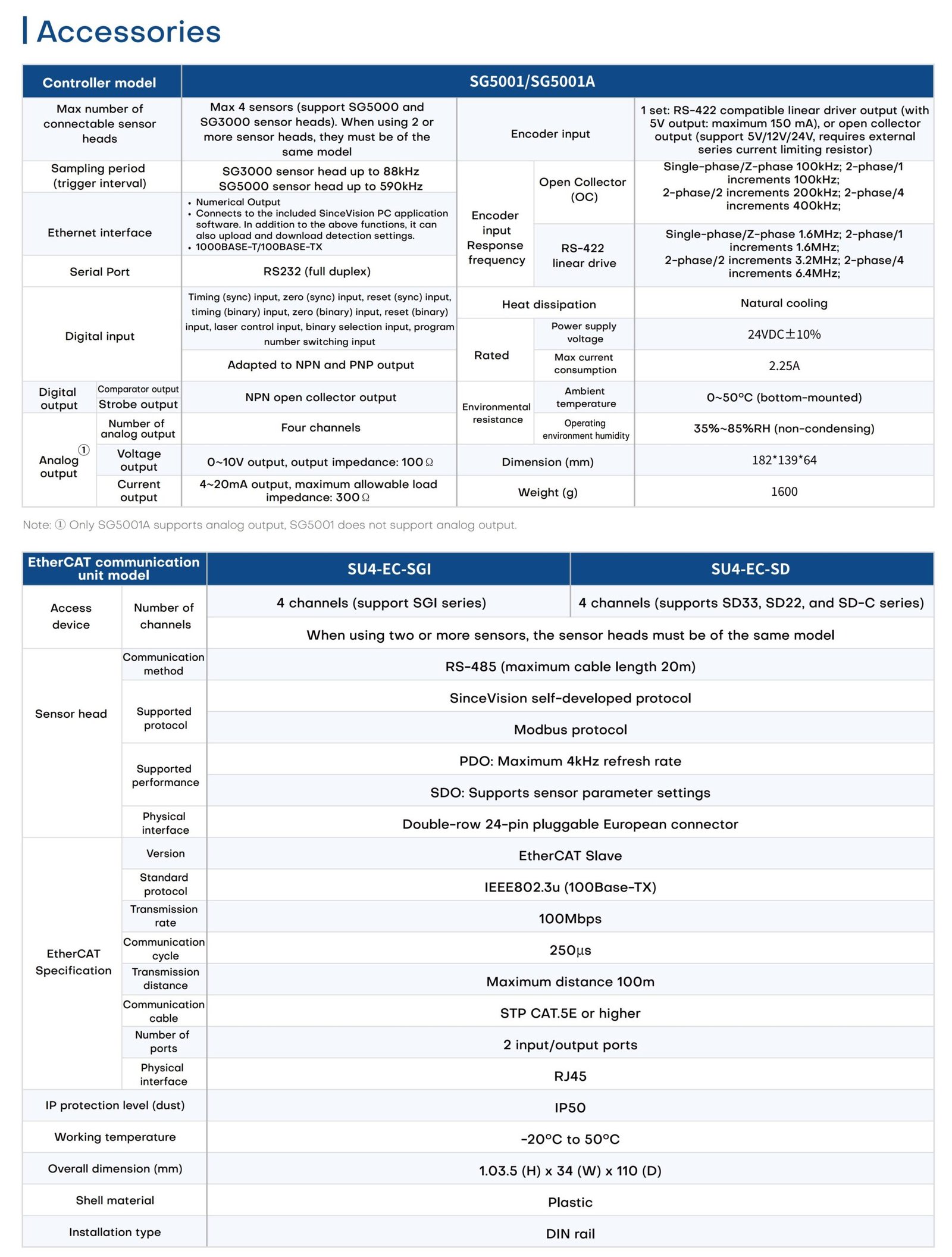

Product Specification
Parameters/Model	SCB-GCAM-HA3-Xm
Compatible models	SG3000/SG5000
	I-type connector (straight)
Universal type 3-meter cable	SCB-GCAM-HA3-3m
Universal type 5-meter cable	SCB-GCAM-HA3-m
Universal type 10-meter cable	SCB-GCAM-HA3-10m
5-meter cable extension	SCB-GCAM-HA3Y-5m
		IP Level	IP67, conforming to IEC 60529 standard
Minimum curvature radius of cable components (fixed)	30mm
Service life	Installation of cable chain with radius not less than 72mm (100mm is recommended), with repeated bending times > 10 million times ①.
Note: ① Test environment: temperature/humidity 23°C/40% RH; Test conditions: cable chain radius: R72mm; cable chain stroke: 1000mm, running speed: 60 round/minute; Measured results: standard value > 30 million times; Minimum value > 10 million times.
Parameters/Model	SCB-GICAM-HA1-Xm
Compatible models	SGl series
	I-type connector (straight)
Universal type 3-meter cable	SCB-GICAM-HA1-3m
Universal type 6-meter cable	SCB-GICAM-HA1-6m
Universal type 10-meter cable	SCB-GICAM-HA1-10m
IP Level	IP67, conforming to IEC 60529 standard
Minimum curvature radius of cable components (fixed)	30mm
Service life	Installation of cable chain with radius not less than 72mm (100mm is recommended), with repeated bending times > 10 million times ①.
Note: ① Test environment: temperature/humidity 23°C/40% RH; Test conditions: cable chain radius: R72mm; cable chain stroke: 1000mm, running speed: 60 round/minute; Measured results: standard value > 30 million times; Minimum value > 10 million times.
