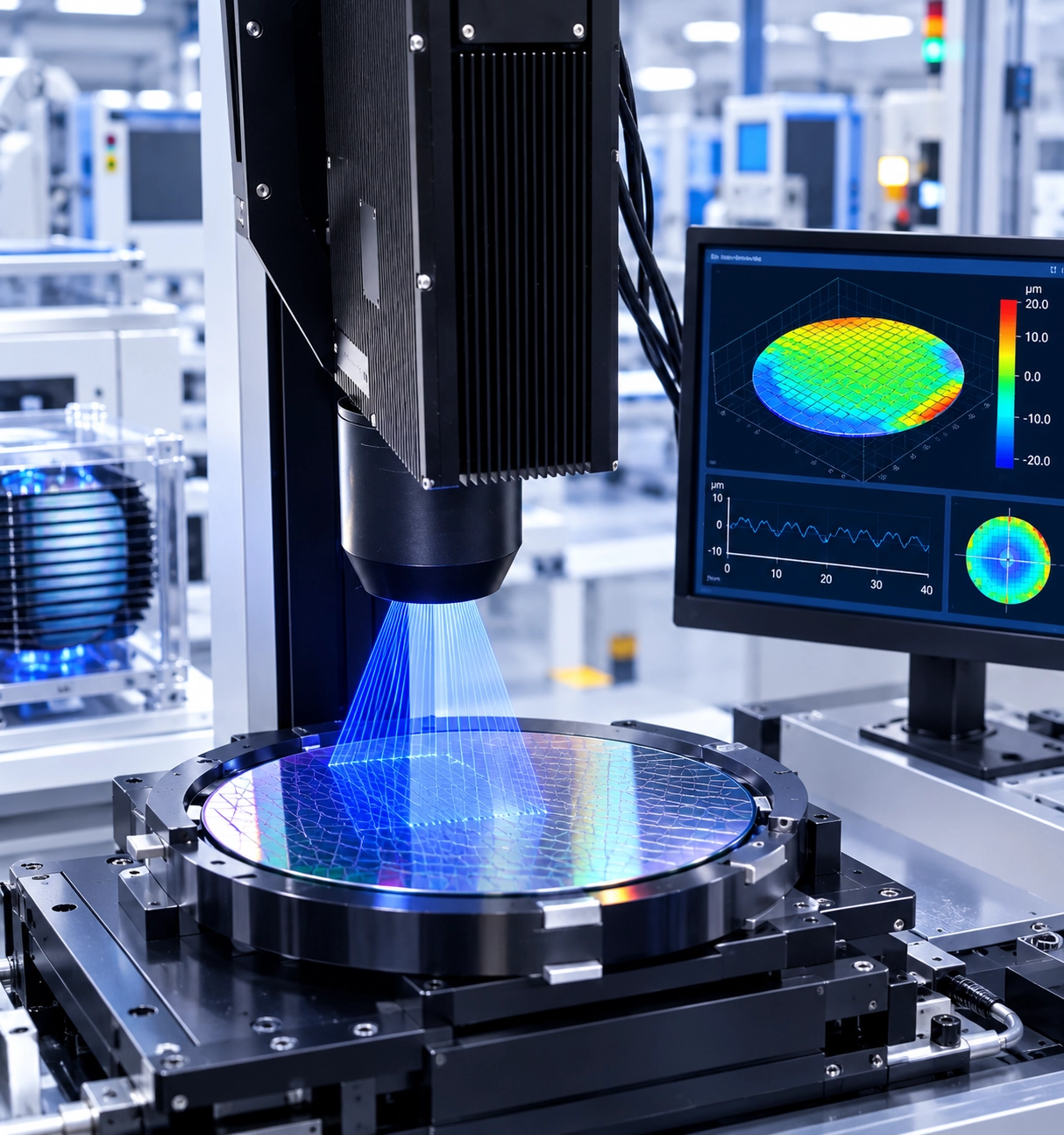

Description
High-speed, high-resolution inspection
With up to 4,096 contour data points and a fine point spacing—X-axis contour data spacing as fine as
1.875 µm—it accurately captures minute details, enabling high-resolution 3D in-line inspection
with ease; a scanning speed of up to 37 kHz (maximum full-range scanning rate of 8.2 kHz) makes it
suitable for complex, high-volume, high-speed scanning applications
Wide Measurement Range and Field of View
Maximum measurement field of view of 20.4 mm, capable of covering significant height variations—
twice that of comparable products—thereby reducing the number of scans required; Z-axis measurement range of up to 7 mm enhances inspection efficiency
Offers excellent angle compatibility (maximum mirror-like surface compatibility of ±50°), enabling surface inspection of complex geometries such as deep holes, gaps and curved surfaces
The sensor utilises a coaxial optical design to enable non-contact measurement; the detection of sensitive components
causes no stress damage and offers strong material adaptability, unaffected by material, shape or
reflectivity, allowing inspection of mirror-like surfaces, curved surfaces and transparent materials, amongst others.
| Spectral Confocal Product Specifications List | |||||
|---|---|---|---|---|---|
| Model | SG4050 | SG1007 | SG1110 | SG4025 |
|
| Number of contour data points | 4096 | 1280 | 1280 | 4096 | |
| Scanning speed | 4.4~18kHz | 8.2~37kHz | 7.3~37kHz | 4.4~18kHz | |
| Interval between X-axis contour data points | 5 μm | 1.875 μm | 9.3 μm | 2.5 μm | |
| Z-axis linearity (mirror finish) | ± 2μm | ± 0.25 μm | ± 4μm | ± 1μm | |
| Z-axis repeatability (mirror finish) | 0.5μm | 0.05 μm | 1μm | 0.25 μm | |
| Reference distance | 45.9mm | 6.7mm | 39.3mm | 24mm | |
| Z-axis measurement range | 5mm | 0.7mm | 7mm | 2.5mm | |
| X-axis measurement range | 20.4mm | 2.4mm | 11.9mm | 10.2mm | |
| Mirror compatibility angle | ± 15 ° | ± 50 ° | ± 12 ° | ± 30 ° | |
| Overall dimensions (mm) | 183.5 x 455.7 x 85.5 | 438.6 x 365 x 99 | 342.1 x 365 x 99 | 183.5 x 475.1 x 85.5 | |
| Weight | 8.4kg | 13kg | 12kg | 9.3kg | |
| Data Interface | M12 Xcode 8 芯 GigE Vision | ||||
| IO | 1 differential encoder input; 1 programmable input; 1 programmable output | ||||
| Total power output | 80W ± 5% | \ \ \ \ 65W ± 5% | 65W ± 5% | 80W ± 5% | |
| Power Supply Specifications | DC 24V ± 10% | ||||
| Interface types | Signal interface ： M12 Xcode 8芯 ； Power socket ： M12 Acode 17 芯 | ||||
| Protection rating | lP55 | ||||
| Operating temperature | 15 ℃ ~35 ℃ | ||||
| Ambient humidity | 20%~80% RH (No condensation) | ||||
| 3 | |||||
