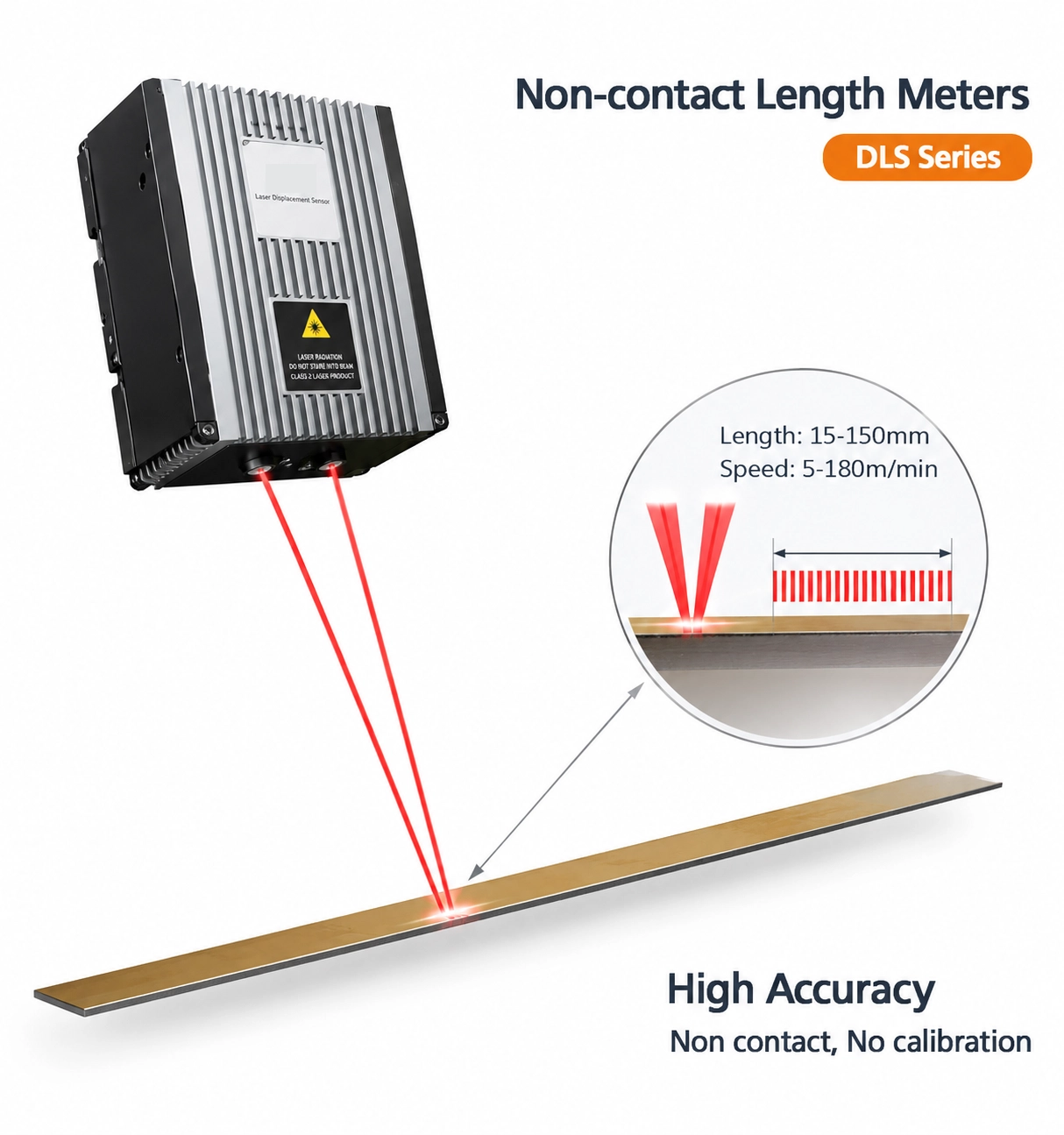

Laser Doppler Velocimeter & Length Gauge

Description

Unidirectional Laser Velocity and Length Measuring Instrument

Product Description

Bidirectional Laser Speed & Length Meter is suitable for measuring

the length and speed of objects with various materials, colors, shapes, and

transparency levels, and can also be used for fixed-length cutting. It

supports zero-speed mode and forward/reverse direction detection,

making it ideal for production lines with frequent start-stop operations

and material reversal.

The product supports multiple industrial communication protocols,

including Modbus (RTU/TCP), Bluetooth, as well as industrial Ethernet

protocols such as PROFINET, PROFIBUS, EtherNet/IP, and EtherCAT.

• Non-contact measurement ,no calibration requested
• Measurement accuracy of ±0.05%,repeatability of ± 0.02%
• Can be widely used in industries such as cables, rubber, plastics, paper

making, non-ferrous metals, packaging, film, cold rolling, hot rolling,

cloth, extrusion, etc

• RS485, logic input/output, pulse output, industrial Ethernet. etc.

communication is available for choice

• Provide different installation target distance and optical depth options,

ensuring high accuracy measurement

• Suitable for frequent start and reverse operations while maintaining

measurement accuracy and repeatability.

• Supports bidirectional length measurement, ideal for production lines

with frequent start-stop operations and material reversal.

Application

Speed Measurement

Speed Synchronization

Velocity Balance

Enlongation

Speed&Length  Measurement

Parts Length  Measurement

Cut to Length

Ink Printer Control

Encoder Calibration

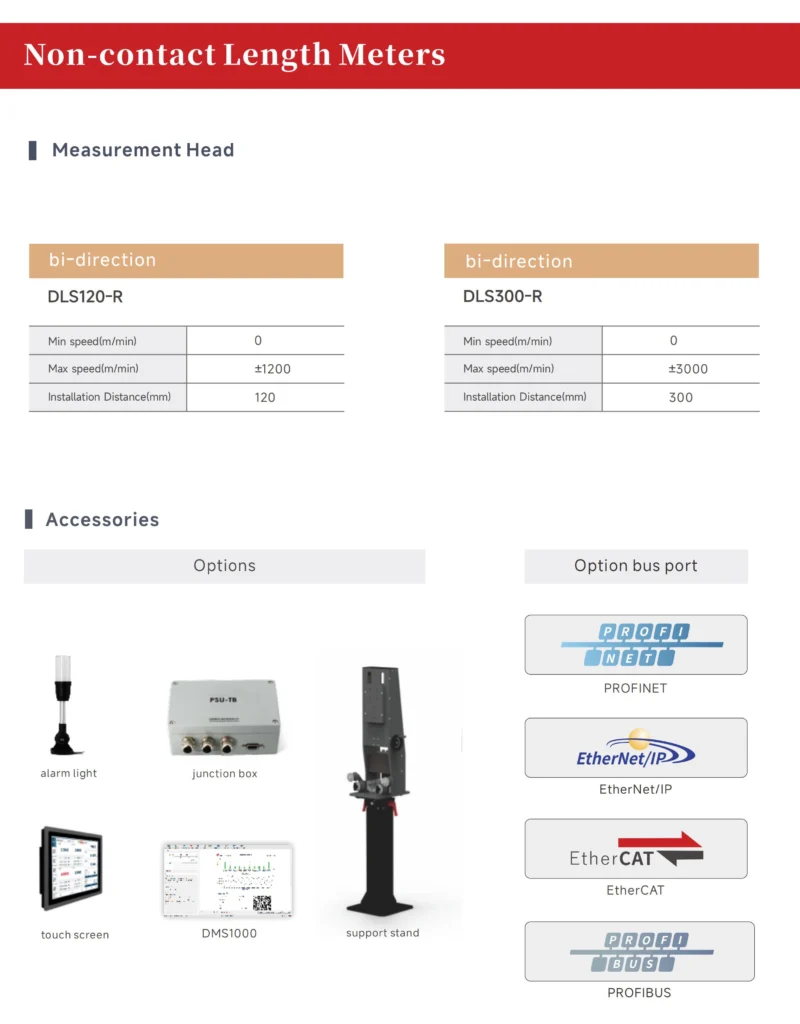

Non-contact Length Meters
Technical Parameter
Model	DLS120-R		DLS300-R
Min speed(m/min)	0		0
Max speed(m/min)	±1200		±3000
Standard measurement distance(mm)	120		300
Depth(mm)	12		60
Size(L *W * Hmm)	165 * 115 *70
Accuracy(%)	±0.05
Repeatability(%）	±0.02
Measurement update time	20us
Power supply	24VDC ± 5% , Max . 30W
IP grade	IP 56
Working temperature	5-40℃(Protection case is available for higher temperature）
Laser beam diameter(mm）	3
Laser Class	3 B
Pulse output	4X single end or 2X pulse output or 1X quadrature output , programmable , pulse speed rate less than 1 M Hz
Digital input	Shutter enable
Digital output	2 programmable output
Standard communication port	RS485(Modbus RTU)
Communication port options	PROFINET, PROFI BUS , Ethernet/IP , DeviceNet
Display communication	RS-485(Modbus RTU)
