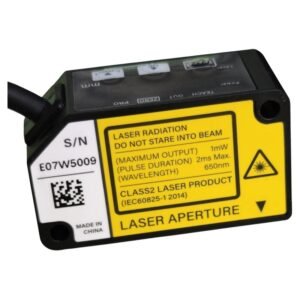

High-Precision Laser Displacement Sensor
M series high-precision laser displacement sensor with 0.25 micrometer repeatability accuracy laser distance measuring instrument

Laser Displacement Sensor

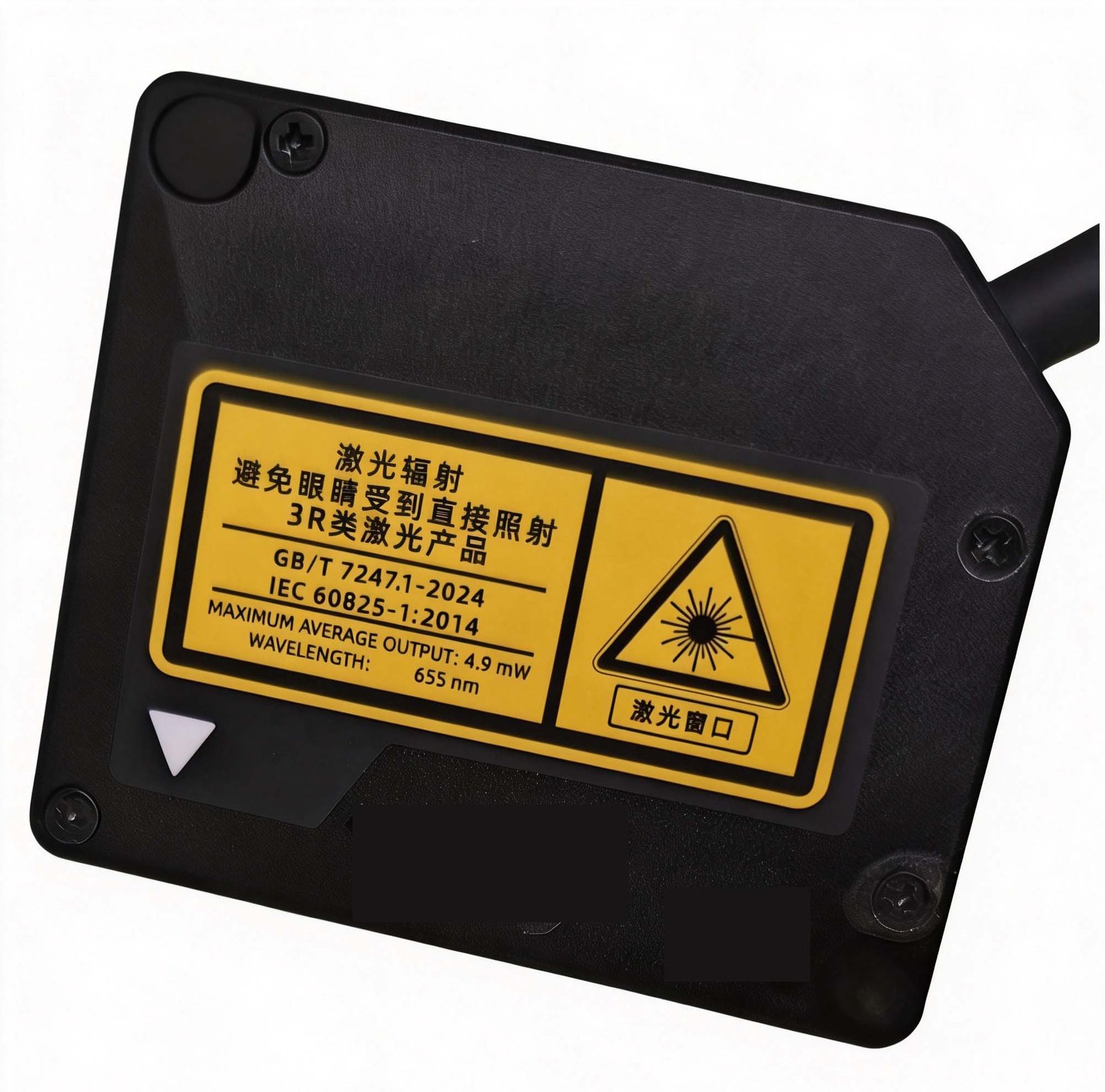

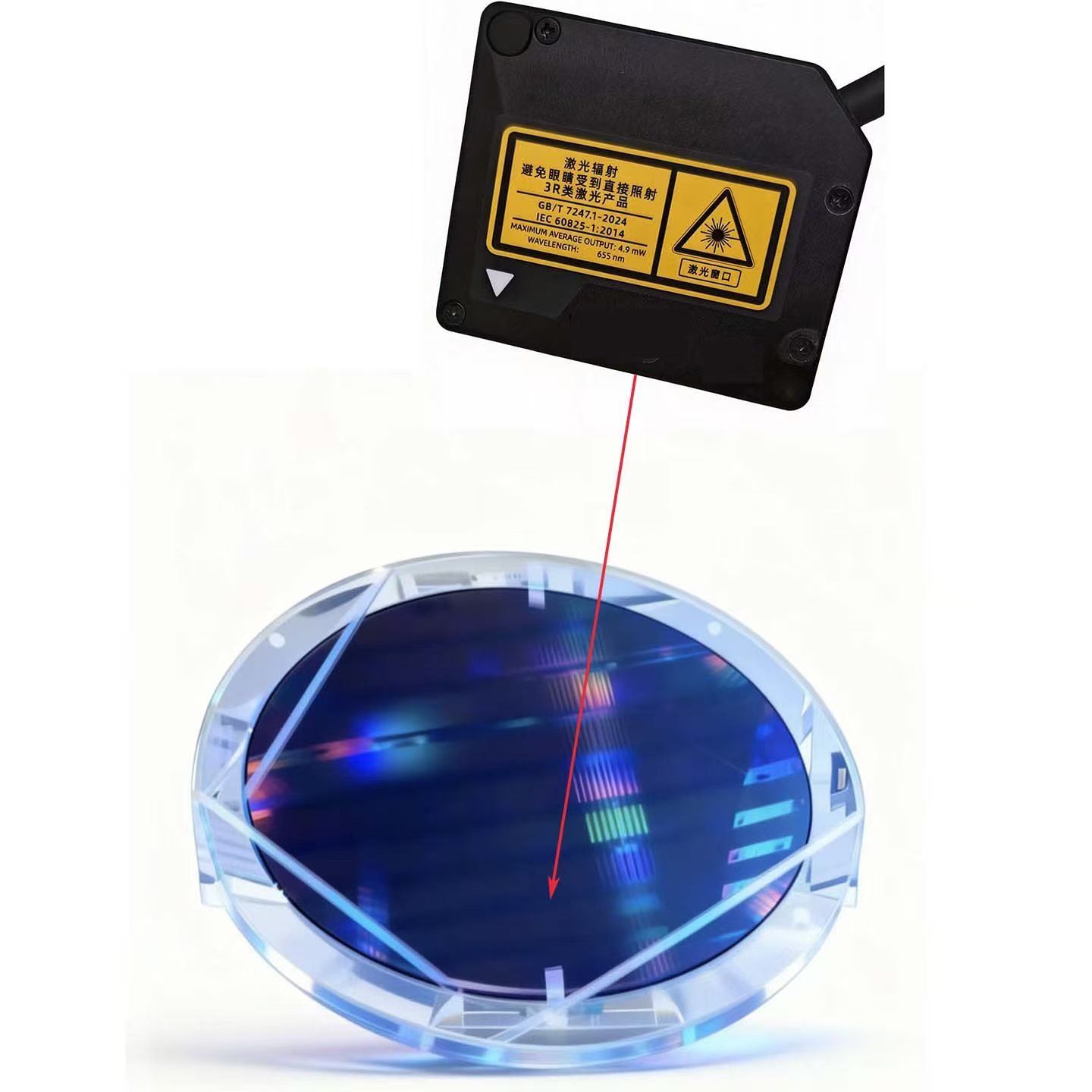

CMOS Laser Displacement Sensor

Ultra-high Repeatability ：0.25μ m
Ultra-high Linearity：±0.05% of F.S
Ultra-fast Sampling Rate：Max50kHz
Simple Interface Configuration：Ethernet RS-485 Analog Output

Full-Frequency
Industrial IO
Controller-Free
Compact Size
Cost-Eƺective
Integrated Functionality 、

SKU: 1000 Category:

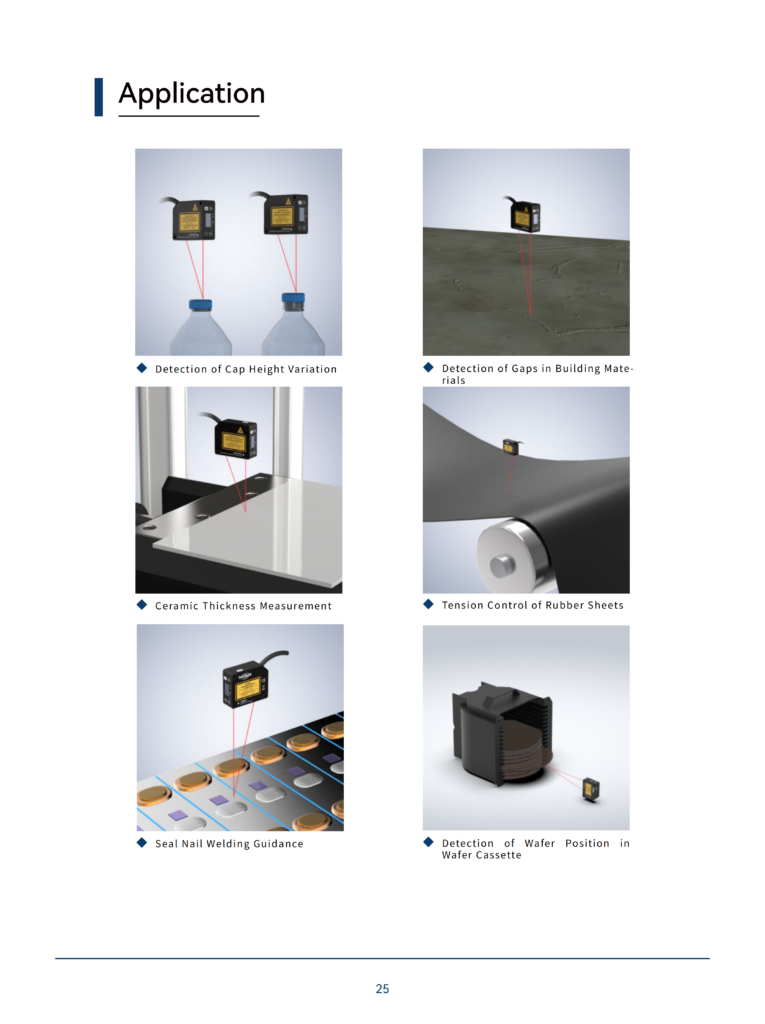

Description

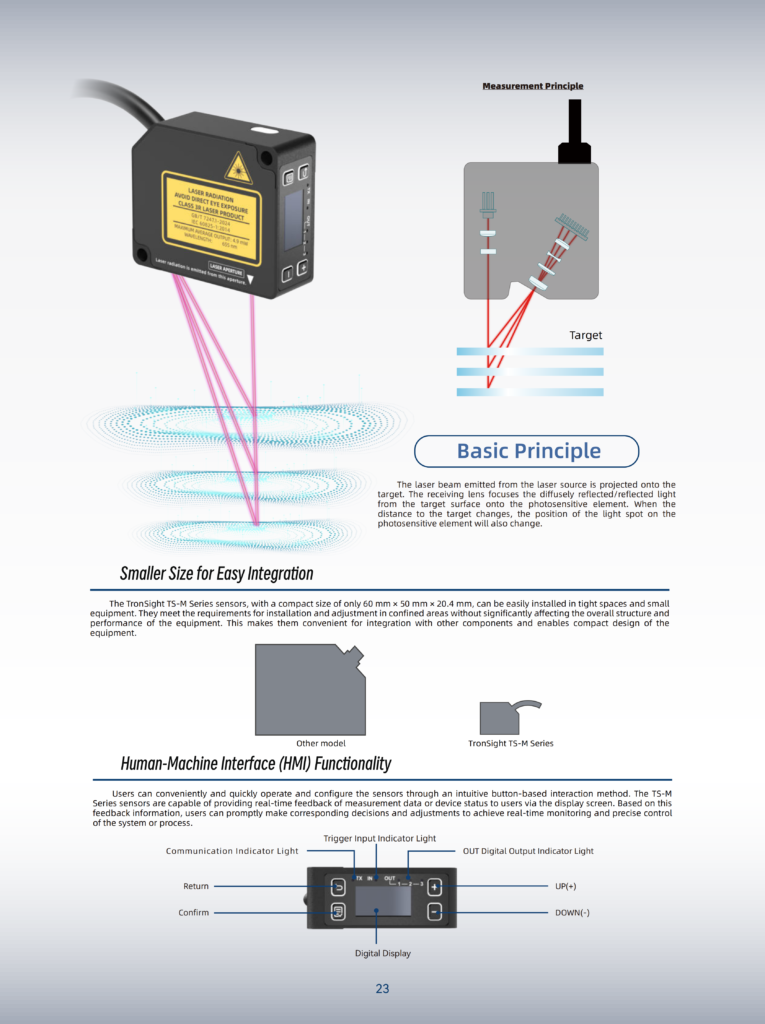

CMOS Laser Displacement Sensor

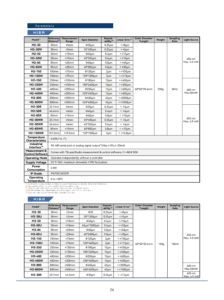

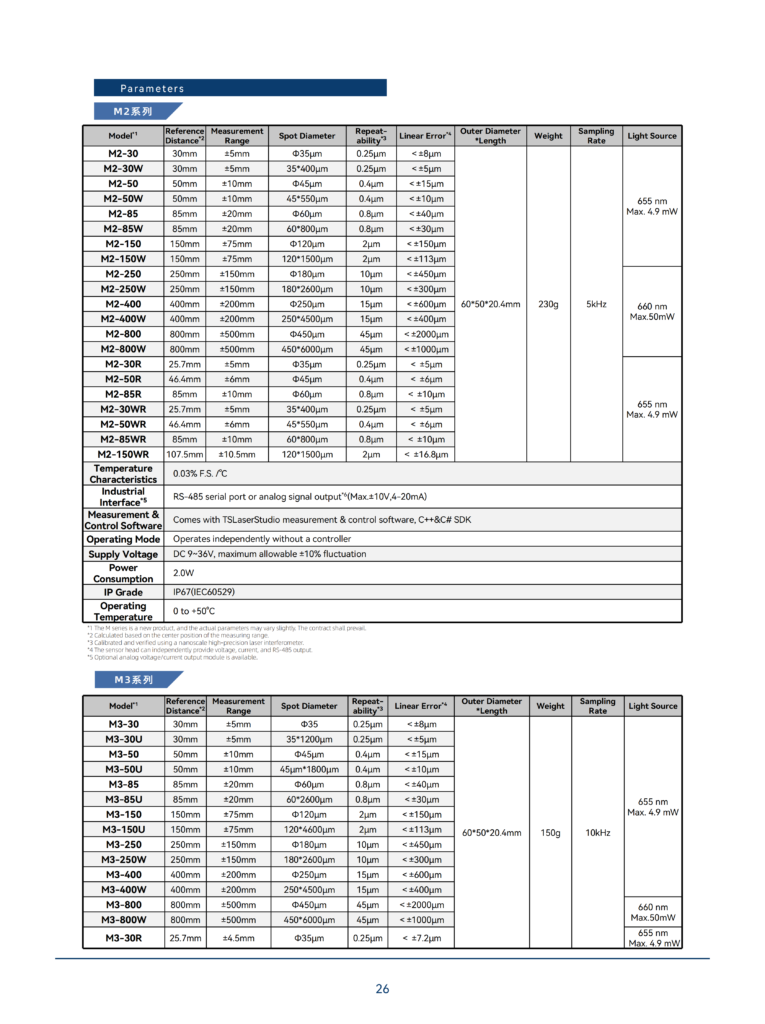

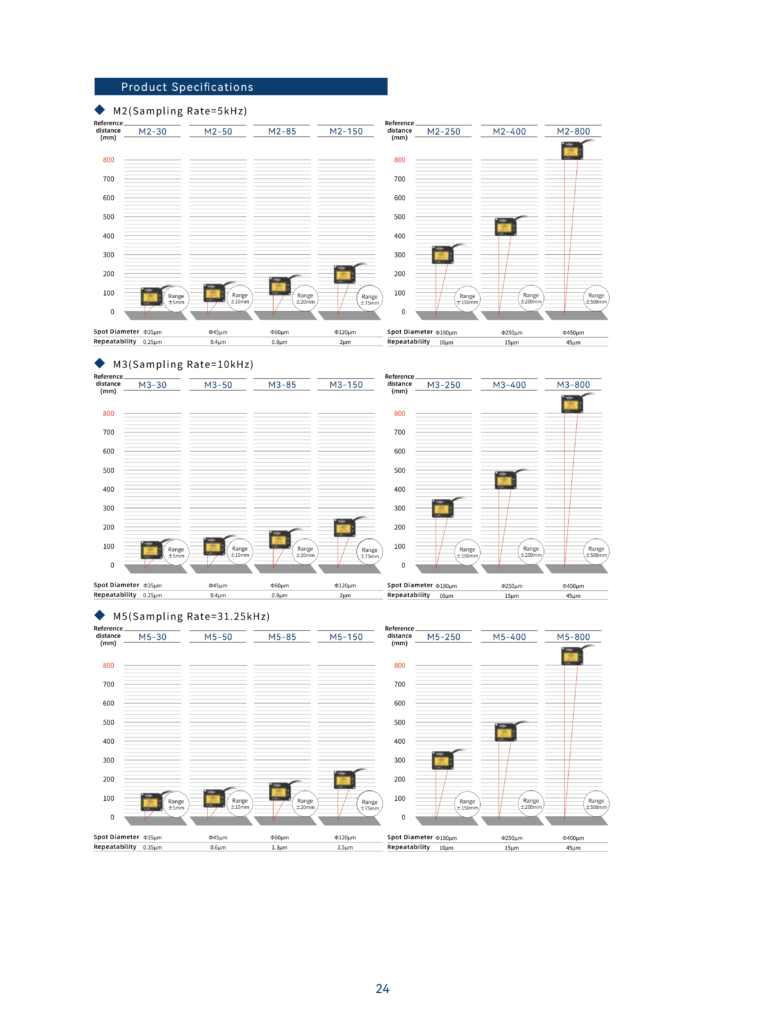

\ \ Parameters
\ \ \ \ M2Series
Model*1Reference
Distance*2		Measurement
Range		Spot DiameterRepeat-
ability		Linear Error*4Outer Diameter
*Length		WeightSampling
Rate		Light Source
M2-3030mm±5mmΦ35μm0.25μm<±8μm60*50*20.4mm230g5kHz655 nm
Max. 4.9 mW
M2-30W30mm±5mm35*400μm0.25μm<±5μm
M2-5050mm±10mmΦ45μm0.4μm<±15μm
M2-50W50mm±10mm45*550μm0.4μm<±10μm
M2-8585mm±20mmΦ60μm0.8μm<±40μm
M2-85W85mm±20mm60*800μm0.8μm<±30μm
M2-150150mm±75mmΦ120μm2μm<±150μm
M2-150W150mm±75mm120*1500μm2μm<±113μm
M2-250250mm±150mmΦ180μm10μm<±450μm660 nm
Max.50mW
M2-250W250mm±150mm180*2600μm10μm<±300μm
M2-400400mm±200mmΦ250μm15μm< ±600μm
M2-400W400mm±200mm250*4500μm15μm<±400μm
M2-800800mm±500mmΦ450μm45μm<±2000μm
M2-800W800mm±500mm450*6000μm45μm<±1000μm
M2-30R25.7mm±5mmΦ35μm0.25μm< ±5μm655 nm
Max. 4.9 mW
M2-50R46.4mm±6mmΦ45μm0.4μm< ±6μm
M2-85R85mm±10mmΦ60μm0.8μm< ±10μm
M2-30WR25.7mm±5mm35*400μm0.25μm< ±5μm
M2-50WR46.4mm±6mm45*550μm0.4μm< ±6μm
M2-85WR85mm±10mm60*800μm0.8μm< ±10μm
M2-150WR107.5mm±10.5mm120*1500μm2μm< ±16.8μm
Temperature
Characteristics		0.03% F.S. /℃
Industrial
Interface*5		RS-485 serial po忙 or analog signal output*6(Max.±10V,4-20mA)
Measurement &
Control Software		Comes with TSLaserStudio measurement & control software, C++&C# SDK
Operating ModeOperates independently without a controller
Supply VoltageDC 9~36V, maximum allowable ±10% fiuctuation
Power
Consumption		2.0W
IP GradeIP67(IEC60529)
Operating
Temperature		0 to +50oC
*1 The M series is a new product, and the actual parameters may vary slightly. The contract shall prevail.
*2 Calculated based on the center position of the measuring range.
*3 Calibrated and verified using a nanoscale high-precision laser interferometer.
*4 The sensor head can independently provide voltage, current, and RS-485 output.
*5 Optional analog voltage/current output module is available.
\ \ \ \ M3Series
Model*1Reference
Distance*2		Measurement
Range		Spot DiameterRepeat-
ability		Linear Error*4Outer Diameter
*Length		WeightSampling
Rate		Light Source
M3-3030mm±5mmΦ350.25μm<±8μm60*50*20.4mm150g10kHz 655 nm
Max. 4.9 mW
M3-30U30mm±5mm35*1200μm0.25μm<±5μm
M3-5050mm±10mmΦ45μm0.4μm<±15μm
M3-50U50mm±10mm45μm*1800μm0.4μm<±10μm
M3-8585mm±20mmΦ60μm0.8μm<±40μm
M3-85U85mm±20mm60*2600μm0.8μm<±30μm
M3-150150mm±75mmΦ120μm2μm<±150μm
M3-150U150mm±75mm120*4600μm2μm<±113μm
M3-250250mm±150mmΦ180μm10μm<±450μm
M3-250W250mm±150mm180*2600μm10μm<±300μm
M3-400400mm±200mmΦ250μm15μm< ±600μm
M3-400W400mm±200mm250*4500μm15μm<±400μm
M3-800800mm±500mmΦ450μm45μm<±2000μm 660 nm
Max.50mW
M3-800W800mm±500mm450*6000μm45μm<±1000μm
M3-30R25.7mm±4.5mmΦ35μm0.25μm< ±7.2μm 655 nm
Max. 4.9 mW
26

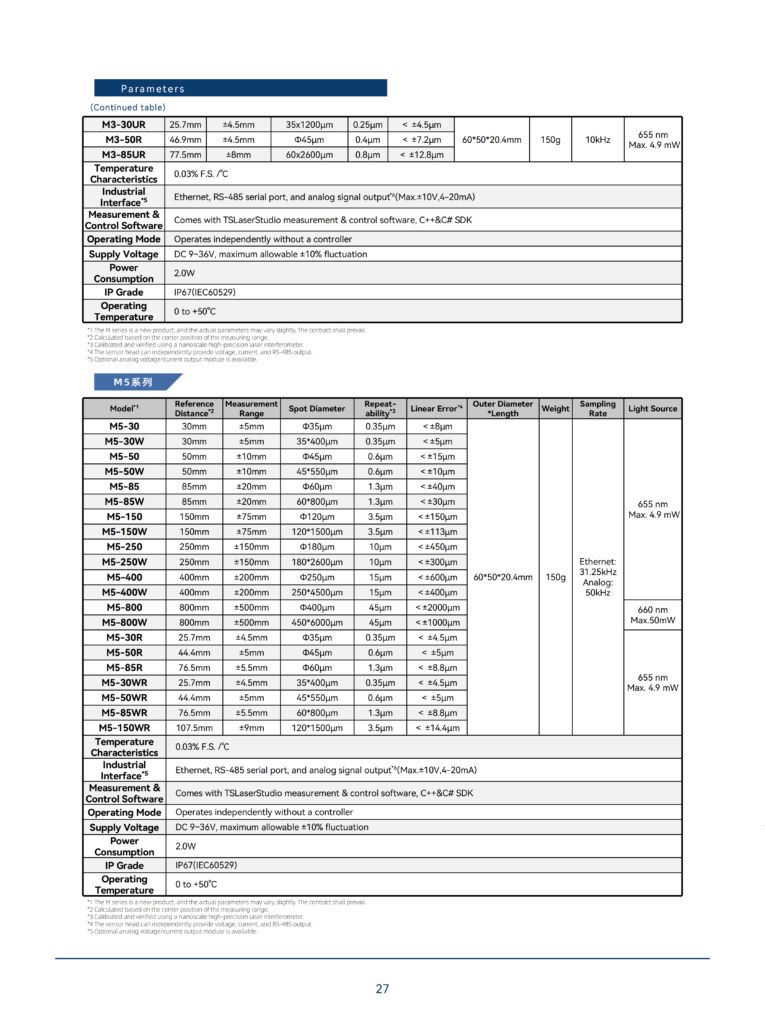

\ \ Parameters
(Continued table)
M3-30UR25.7mm±4.5mm35x1200μm0.25μm< ±4.5μm60*50*20.4mm150g10kHz655 nm
Max. 4.9 mW
M3-50R46.9mm±4.5mmΦ45μm0.4μm< ±7.2μm
M3-85UR77.5mm±8mm60x2600μm0.8μm< ±12.8μm
Temperature
Characteristics		0.03% F.S. /℃
Industrial
Interface*5		Ethernet, RS-485 serial po忙, and analog signal output*6(Max.±10V,4-20mA)
Measurement &
Control Software		Comes with TSLaserStudio measurement & control software, C++&C# SDK
Operating ModeOperates independently without a controller
Supply VoltageDC 9~36V, maximum allowable ±10% fiuctuation
Power
Consumption		2.0W
IP GradeIP67(IEC60529)
Operating
Temperature		0 to +50oC
*1 The M series is a new product, and the actual parameters may vary slightly. The contract shall prevail.
*2 Calculated based on the center position of the measuring range.
*3 Calibrated and verified using a nanoscale high-precision laser interferometer.
*4 The sensor head can independently provide voltage, current, and RS-485 output.
*5 Optional analog voltage/current output module is available.
\ \ \ M5series
Model*1Reference
Distance*2		Measurement
Range		Spot Diameter Repeat-
ability		Linear Error*4Outer Diameter
*Length		WeightSampling
Rate		Light Source
M5-3030mm±5mmΦ35μm0.35μm<±8μm60*50*20.4mm150gEthernet:
31.25kHz
Analog:
50kHz		 655 nm
Max. 4.9 mW
M5-30W30mm±5mm35*400μm0.35μm<±5μm
M5-5050mm±10mmΦ45μm0.6μm<±15μm
M5-50W50mm±10mm45*550μm0.6μm<±10μm
M5-8585mm±20mmΦ60μm1.3μm<±40μm
M5-85W85mm±20mm60*800μm1.3μm<±30μm
M5-150150mm±75mmΦ120μm3.5μm<±150μm
M5-150W150mm±75mm120*1500μm3.5μm<±113μm
M5-250250mm±150mmΦ180μm10μm<±450μm
M5-250W250mm±150mm180*2600μm10μm<±300μm
M5-400400mm±200mmΦ250μm15μm< ±600μm
M5-400W400mm±200mm250*4500μm15μm<±400μm
M5-800800mm±500mmΦ400μm45μm<±2000μm 660 nm
Max.50mW
M5-800W800mm±500mm450*6000μm45μm<±1000μm
M5-30R25.7mm±4.5mmΦ35μm0.35μm< ±4.5μm 655 nm
Max. 4.9 mW
M5-50R44.4mm±5mmΦ45μm0.6μm< ±5μm
M5-85R76.5mm±5.5mmΦ60μm1.3μm< ±8.8μm
M5-30WR25.7mm±4.5mm35*400μm0.35μm< ±4.5μm
M5-50WR44.4mm±5mm45*550μm0.6μm< ±5μm
M5-85WR76.5mm±5.5mm60*800μm1.3μm< ±8.8μm
M5-150WR107.5mm±9mm120*1500μm3.5μm< ±14.4μm
Temperature
Characteristics		0.03% F.S. /℃
Industrial
Interface*5		Ethernet, RS-485 serial po忙, and analog signal output*6(Max.±10V,4-20mA)
Measurement &
Control Software		Comes with TSLaserStudio measurement & control software, C++&C# SDK
Operating ModeOperates independently without a controller
Supply VoltageDC 9~36V, maximum allowable ±10% fiuctuation
Power
Consumption		2.0W
IP GradeIP67(IEC60529)
Operating
Temperature		0 to +50oC
*1 The M series is a new product, and the actual parameters may vary slightly. The contract shall prevail.
*2 Calculated based on the center position of the measuring range.
*3 Calibrated and verified using a nanoscale high-precision laser interferometer.
*4 The sensor head can independently provide voltage, current, and RS-485 output.
*5 Optional analog voltage/current output module is available.
