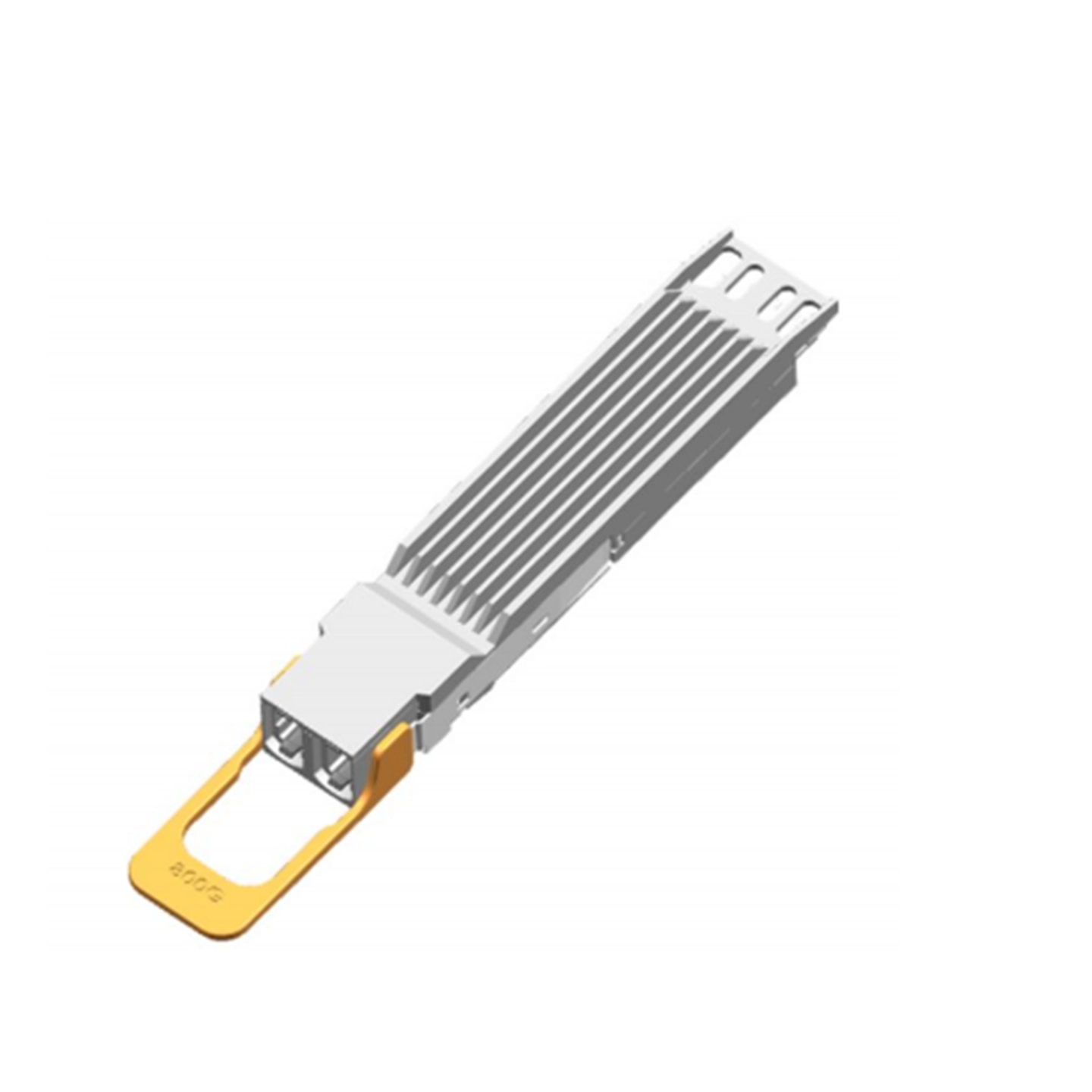

800G OSFP112 SR8 Optical Transceiver Module

Description

• 858H-M1B
• Product Features 8x100G PAM4 retimed 800GAUI-8 electrical interfaceDual MPO-12 APC connector and MPO16 APC connector are provided

  

  8 channel VCSEL arrays and 8 channels PIN photo detector arrays

  

  Maximum link length of 60m on OM3 or 100m on OM4

  

  Hot Pluggable OSFP form factor

  

  Compliant to OSFP Module Specification Rev 5.0

  

  Compliant with CMIS 5.2

  

  Compliant with IEEE 802.3db

  

  Compliant to IEEE 802.3ck

  

  Less than 14W in temperature range of 0 to 70℃

  Applications

  

  800GBASE-SR8 800G Ethernet

  

  Data center

  General Description

  FYOS-858H-M1B is an Eight-Channel, Parallel, Pluggable, Fiber-Optic OSFP for 800Gigabit Ethernet applications. This transceiver

  is a high performance module for short-range data communication and interconnect application. It integrates eight data lanes in each

  direction with 8×53.125GBd. The length of OSFP SR8 is up to 60 meters over OM3 MMF or 100 meters over OM4 MMF. This module

  is designed to operate over multimode fiber systems using a nominal wavelength of 850nm
